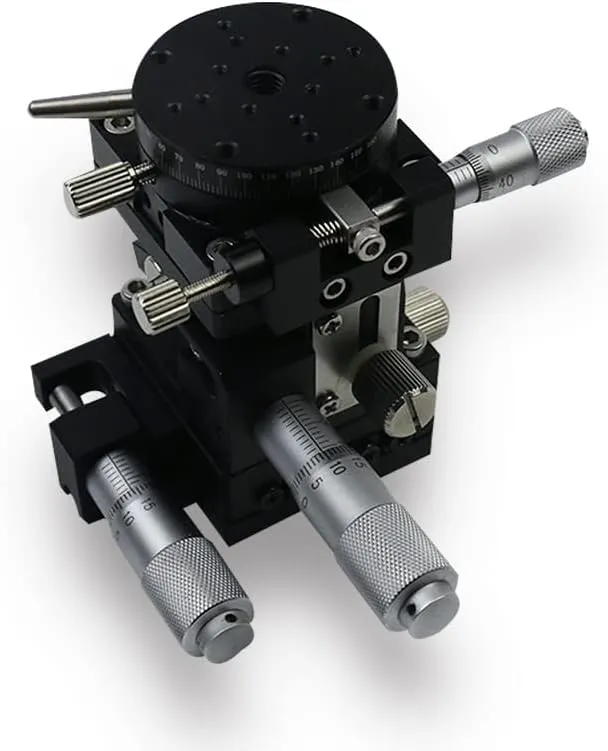

Product model Specifications: XZR40-L
Direction of movement: three directions of the XZR axis
Can be achieved: front and rear / left and right, lifting, rotating fine-tuning
Material: Aluminum alloy (black anodized surface)
Table size: 40mm × 40mm
Rail type: V-type precision cross roller guide
Movement amount: X-axis ± 6.5mm, Z-axis 10mm
R axis: coarse adjustment 360° rotation, fine adjustment 5°
Table thickness: 74mm-84mm
Load: 8.8N (1kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.6KG
Item specifics:
Power supply: DC
Motor type: Stepper Motor
Certification: NONE
Origin: Mainland China
